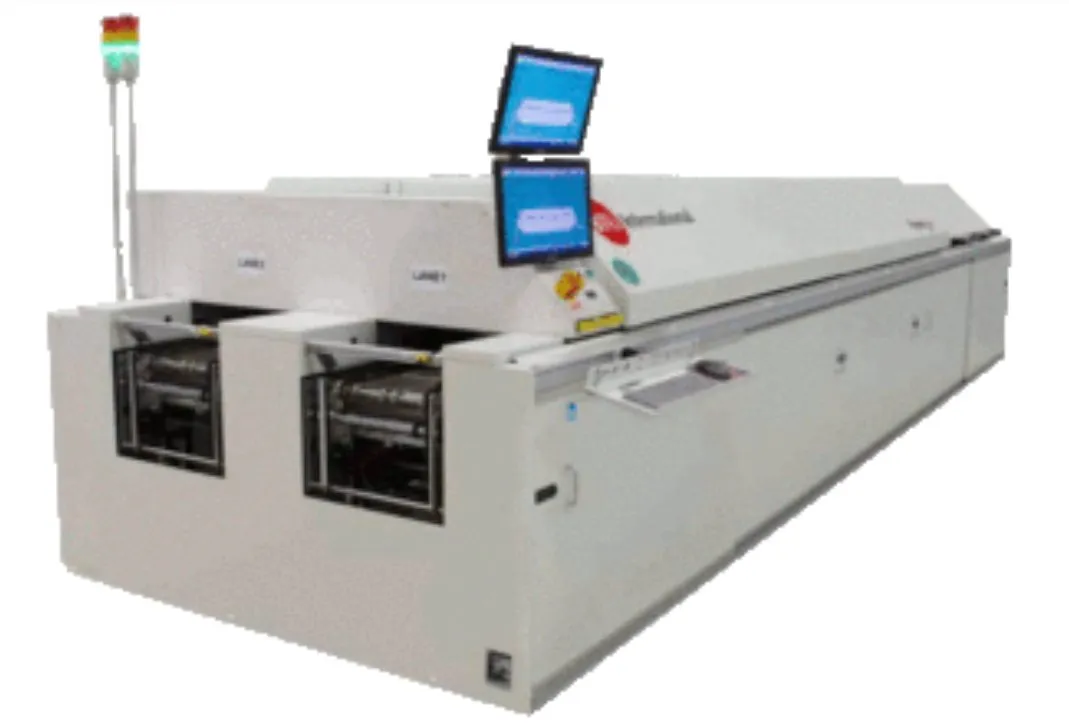

High-performance 8-zone industrial reflow oven optimized for demanding lead-free SMT soldering processes, ensuring precise thermal control and reliability.
Engineered for optimized lead-free SMT processing with guaranteed performance up to 350°C.

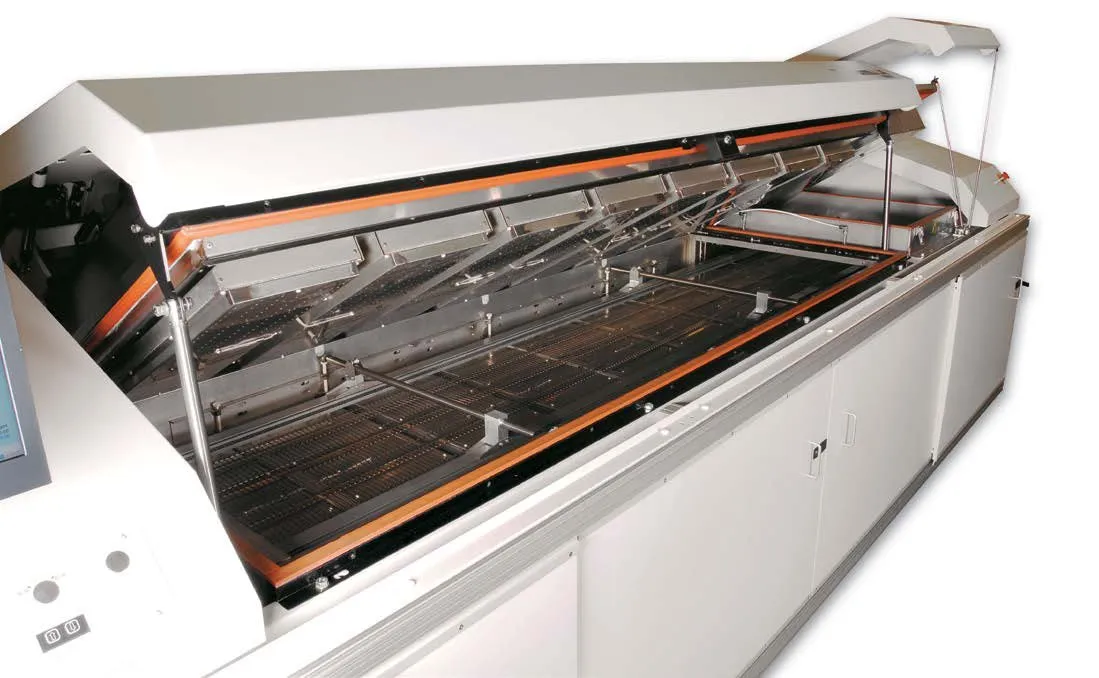

Features 8 top and 8 bottom heating zones utilizing forced impingement convection for superior thermal uniformity.
Proprietary closed-loop convection control ensures precise heating/cooling and consistent heat transfer.
Designed for low power consumption with optional features for reduced nitrogen usage in inert atmosphere models.
Advanced control software provides comprehensive process management and recipe control.

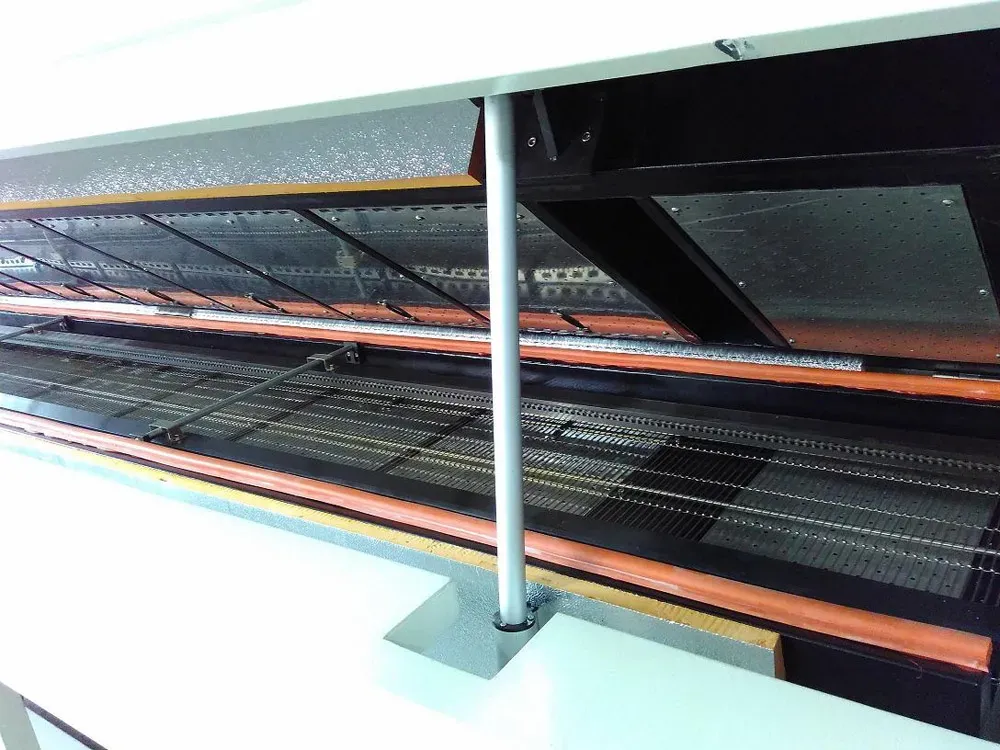

Includes automatic conveyor width adjustment for flexible production requirements.
Utilizes high-reliability, low-mass heating elements for rapid thermal response.
Accommodates large format PCBs with standard processing width up to 457mm (18 inches).
Heating Zones (Top/Bottom): 8 / 8
Heated Length: 2540 mm (100 in)
Maximum Operating Temperature: 350°C
Conveyor Width Range: 51 mm - 457 mm (2 in - 18 in)
Conveyor Speed Range: 25 - 152 cm/min (10 - 60 in/min)
Standard Cooling Length: 610 mm (24 in)
