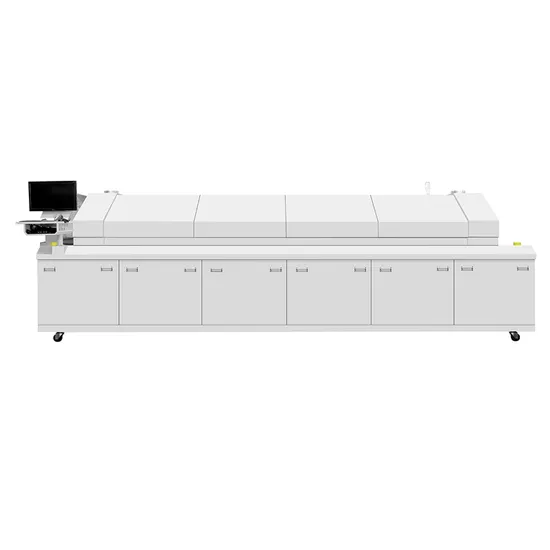

High-precision 8-zone reflow oven designed for stable and reliable PCB soldering in high-volume SMT production lines.
Features 16 total hot air pressurization temperature zones (8 upper, 8 lower) for superior thermal distribution.
Intelligent Siemens PLC control system with LCD computer ensures temperature accuracy of ±1°C for consistent quality.

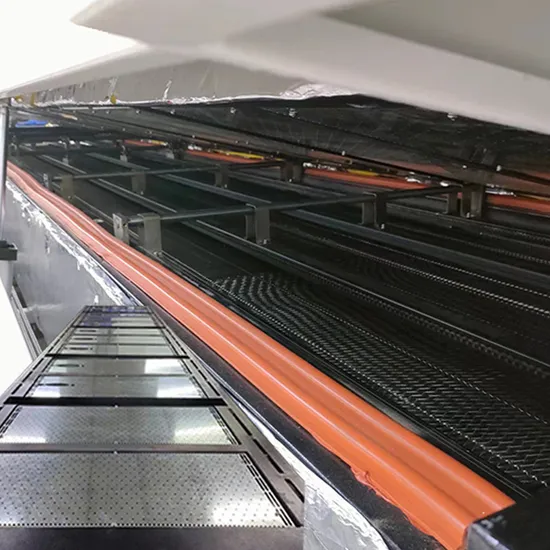

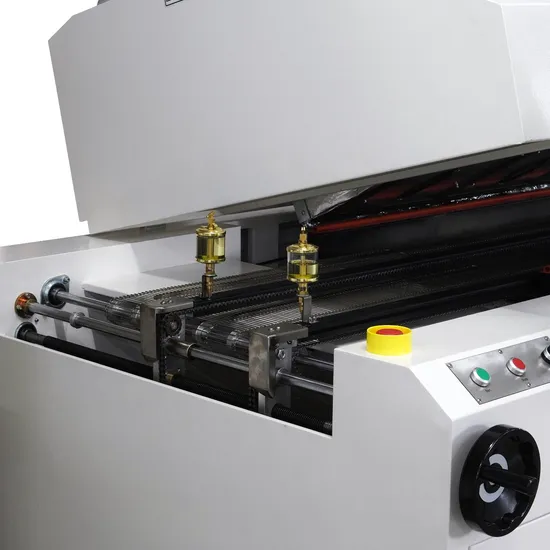

Equipped with a synchronous guide rail and mesh belt conveyor system to guarantee smooth, distortion-free PCB transport.
Built-in UPS and automatic delay shutdown system protect PCBs and the machine from power failure or overheating.
An efficient rosin and waste gas recovery system ensures a cleaner working environment and simplifies maintenance.
CE certified, incorporating a world-leading hot air circulation heating mode for high thermal compensation efficiency.
Heating Zones: 16 total (8 upper / 8 lower)
Heating Zone Length: 3140mm
Total Power: 38KW

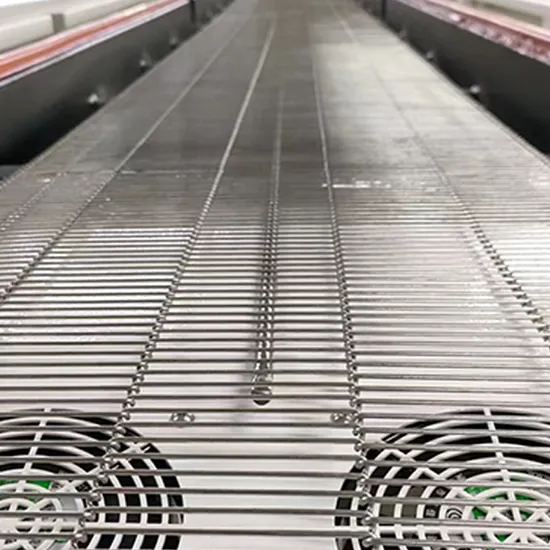

Conveyor System: Stainless steel mesh (450mm width) and chain conveyor
Conveyor Speed: 0-2.2 m/min
Temperature Range: Room Temperature - 350°C
