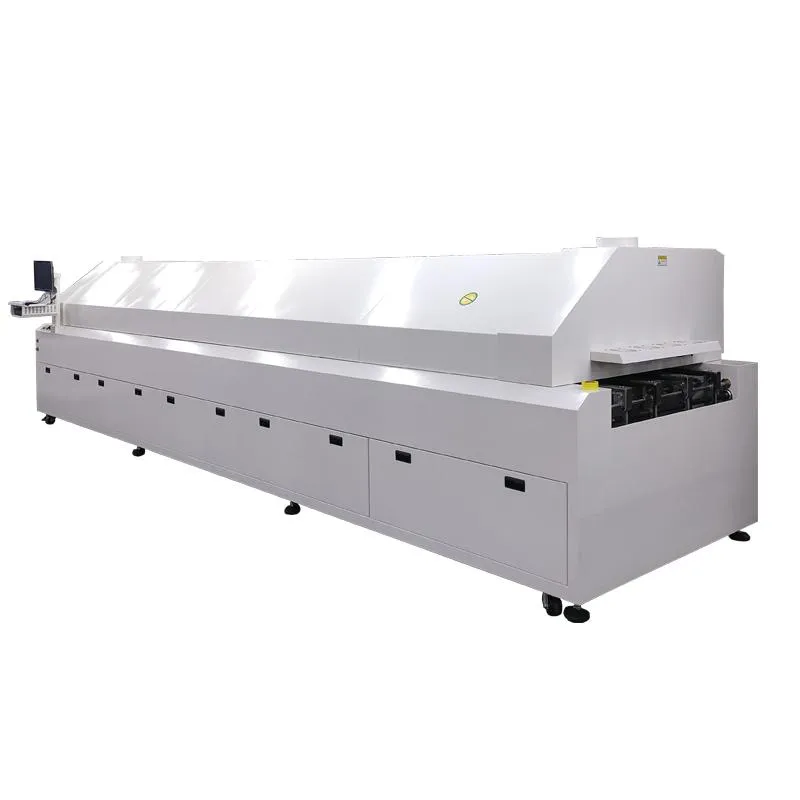

High-performance 8-zone industrial reflow oven engineered for demanding SMT production and precise PCB assembly soldering.
Features 8 independently controlled upper and 8 lower heating zones for precise SMT temperature profiling (±1°C accuracy).

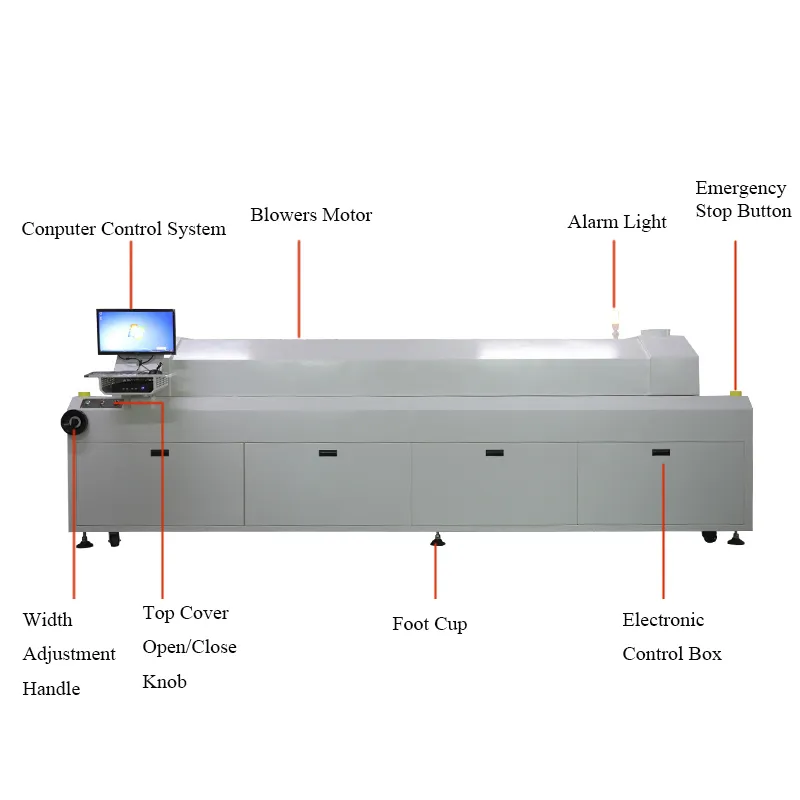

Intelligent control system with user-friendly interface ensures stable and reliable offline operation capabilities.

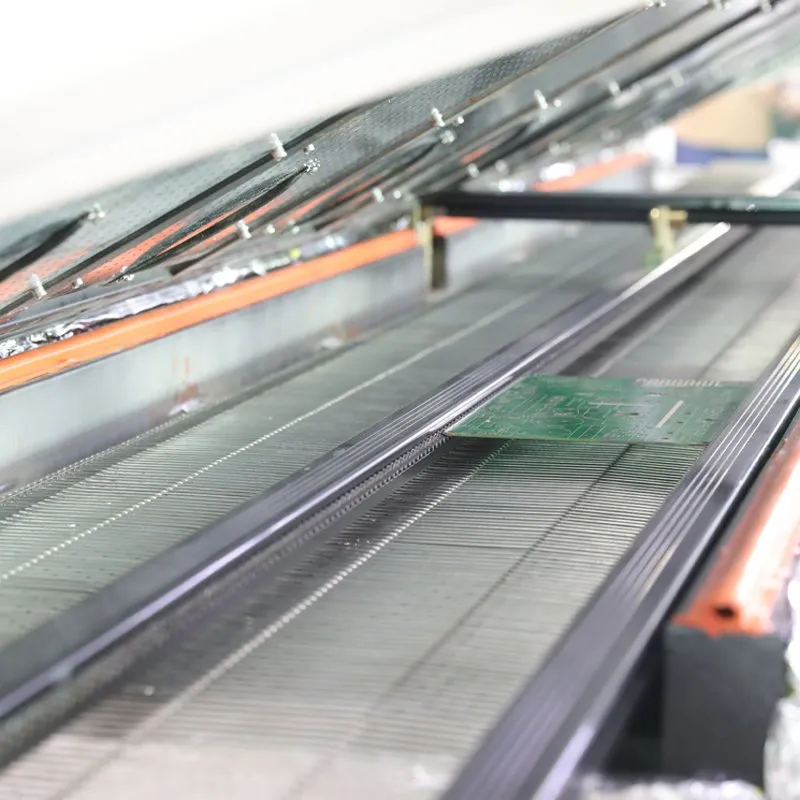

Synchronous guide rail and tensioned conveyor system provide smooth, distortion-free PCB transport.
Advanced forced hot air convection technology delivers efficient heat transfer and excellent thermal uniformity.
Integrated UPS and delayed shutdown safeguard PCBs and equipment during power fluctuations.
Rapid cooling system (4-8°C/sec) optimizes solder joint crystallization for lead-free processes.

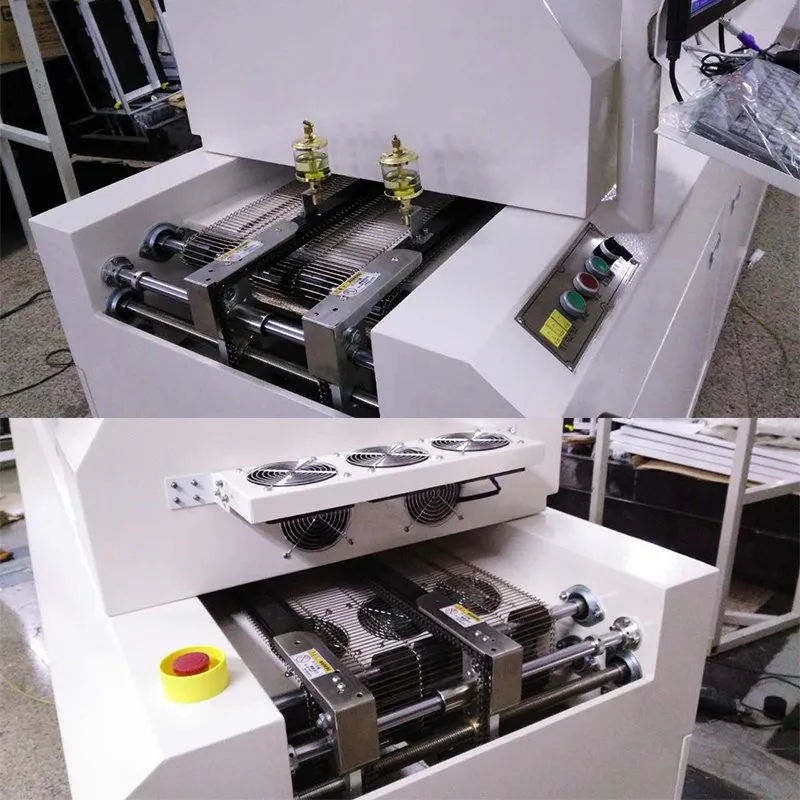

Built-in rosin recovery and filtration system simplifies maintenance and manages process byproducts.
Password-protected operating system secures process parameters and enables operational traceability.
Number of Heating Zones: 8 Upper / 8 Lower

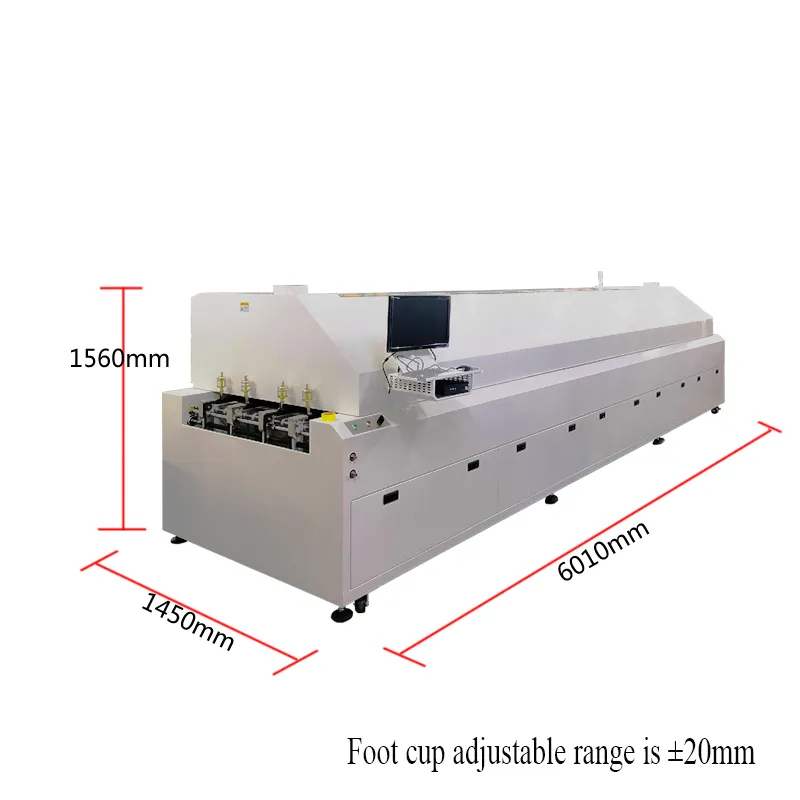

Total Heating Zone Length: 3140 mm
Temperature Control Accuracy: ±1°C
Maximum Conveyor Width: 450 mm
Conveyor Speed Range: 0 - 2.2 M/min
Cooling Rate: 4 - 8 °C/second
