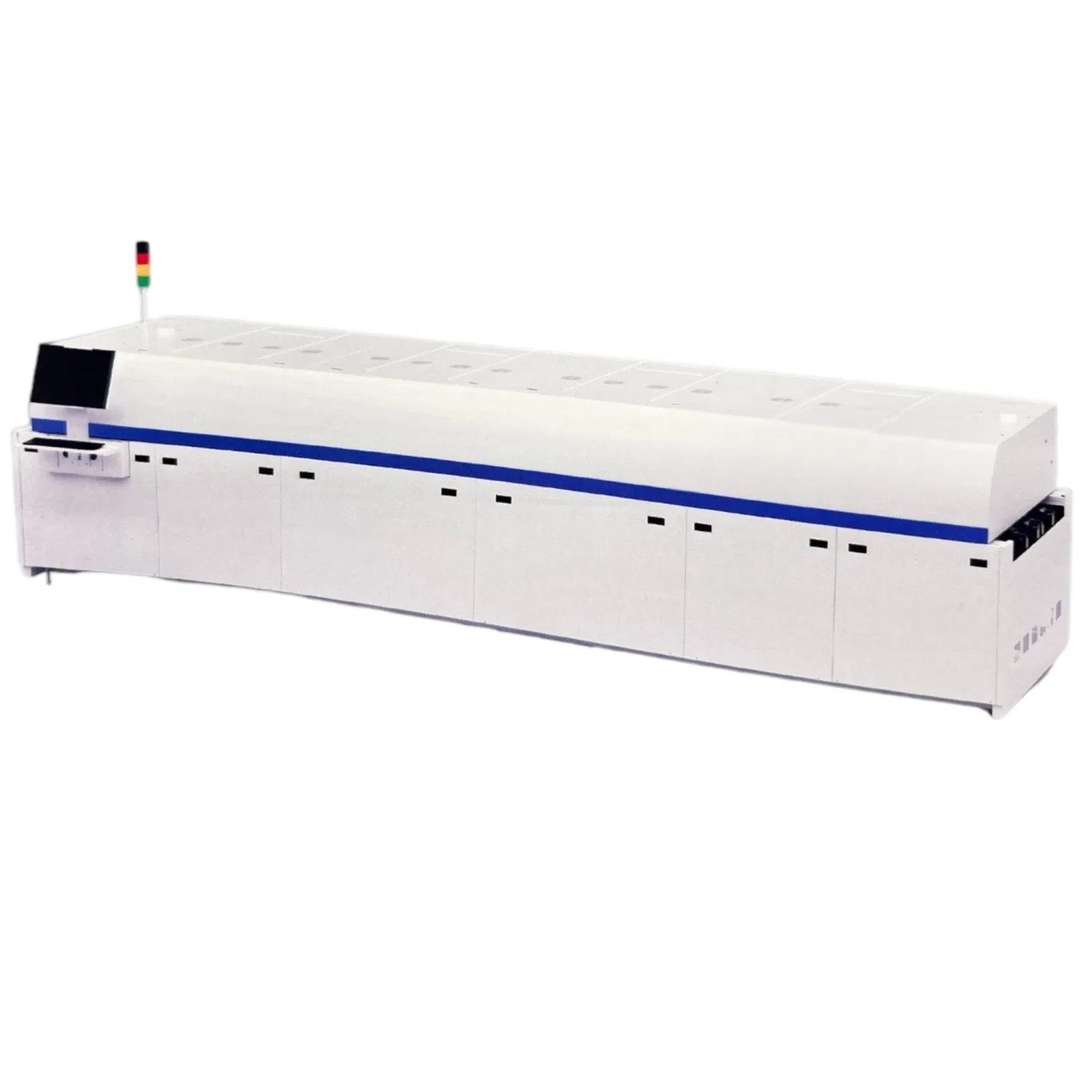

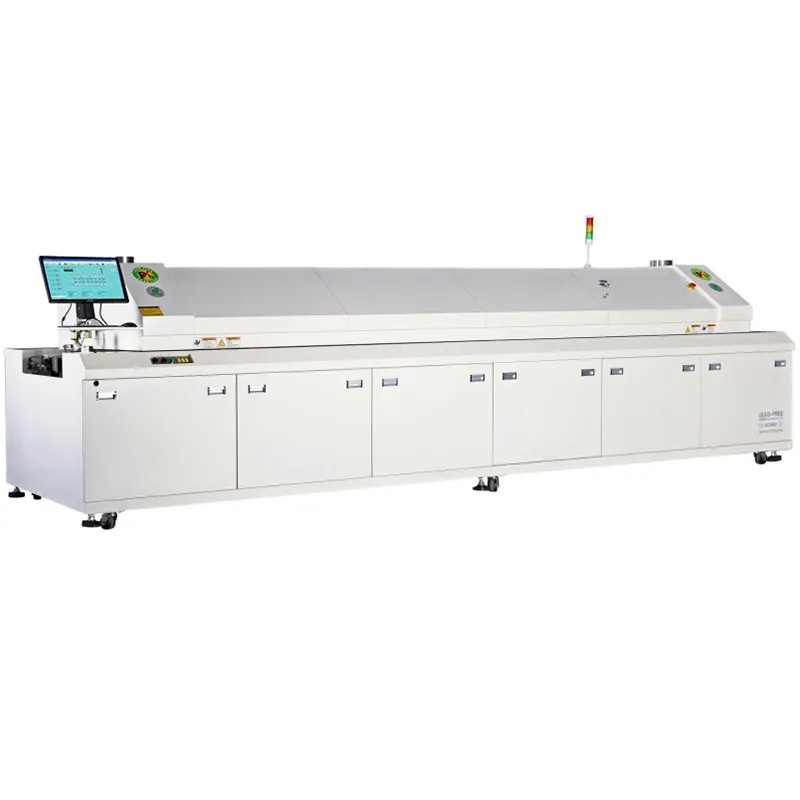

High-efficiency 13-zone reflow oven optimized for LED tube and SMT PCB assembly, delivering precise thermal control and consistent performance.
Optimized for high-efficiency LED tube and general SMT PCB assembly processes.
Features 13 top and 13 bottom forced convection zones for meticulous thermal profiling.
Achieves excellent thermal uniformity (±3.0°C cross-belt) critical for consistent soldering results.
Utilizes instant response open coil heaters for rapid profile adjustments (5-15 minutes).

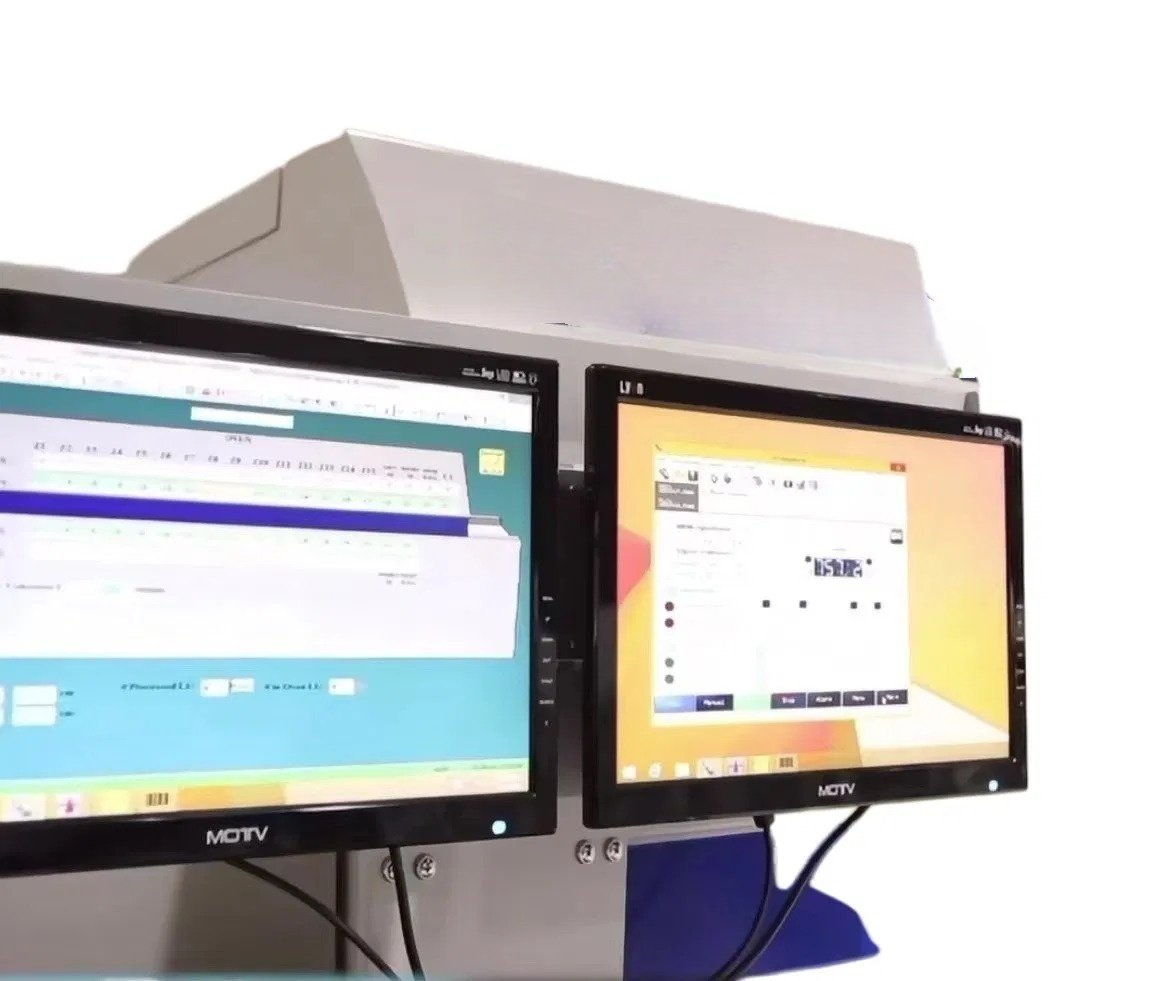

Equipped with an advanced computer control system (Windows OS) for comprehensive process management and data logging.
Offers a highly configurable platform with options for Nitrogen atmosphere and high-temperature (up to 450°C) operation.
Energy-efficient design operates with low continuous power consumption (9-15 kW).

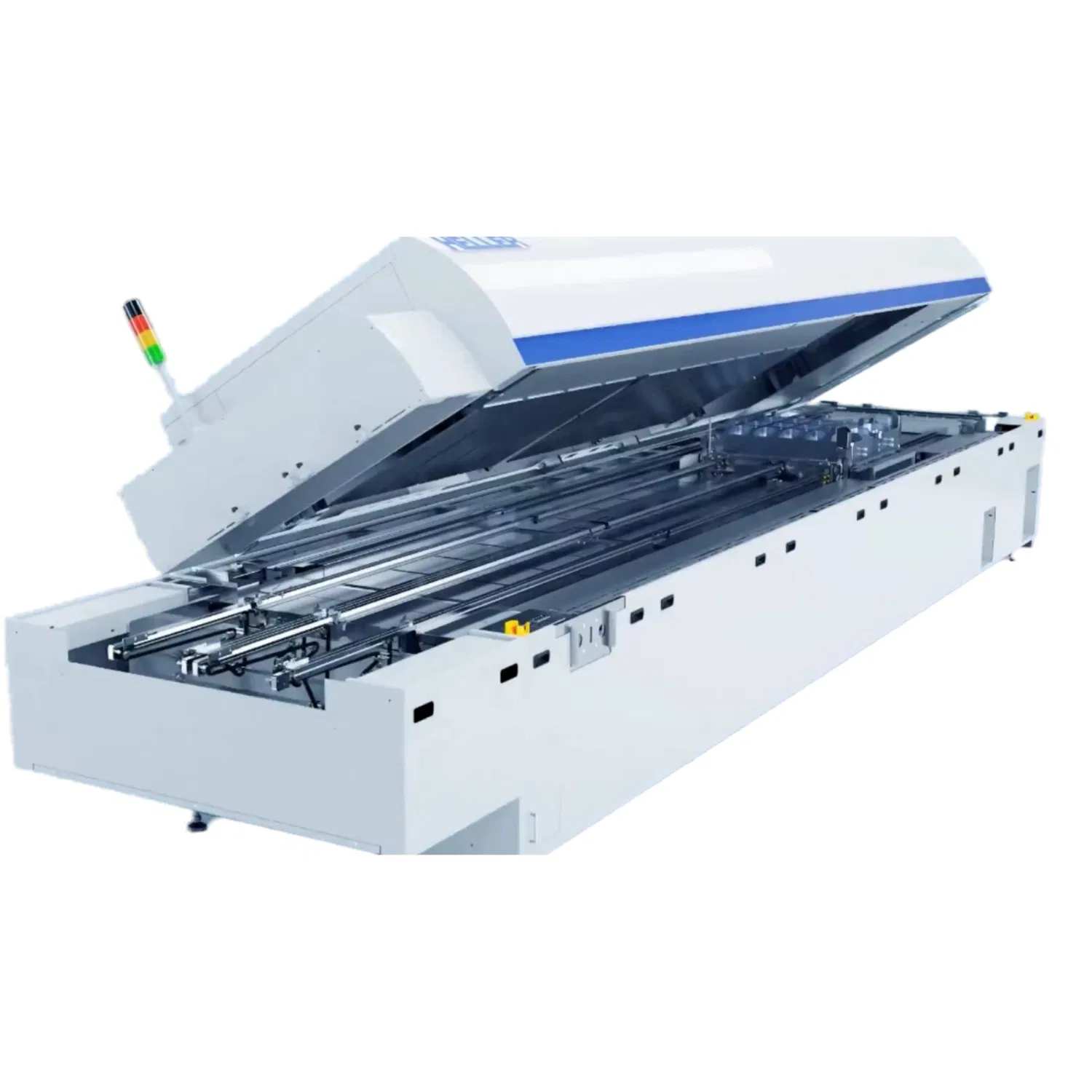

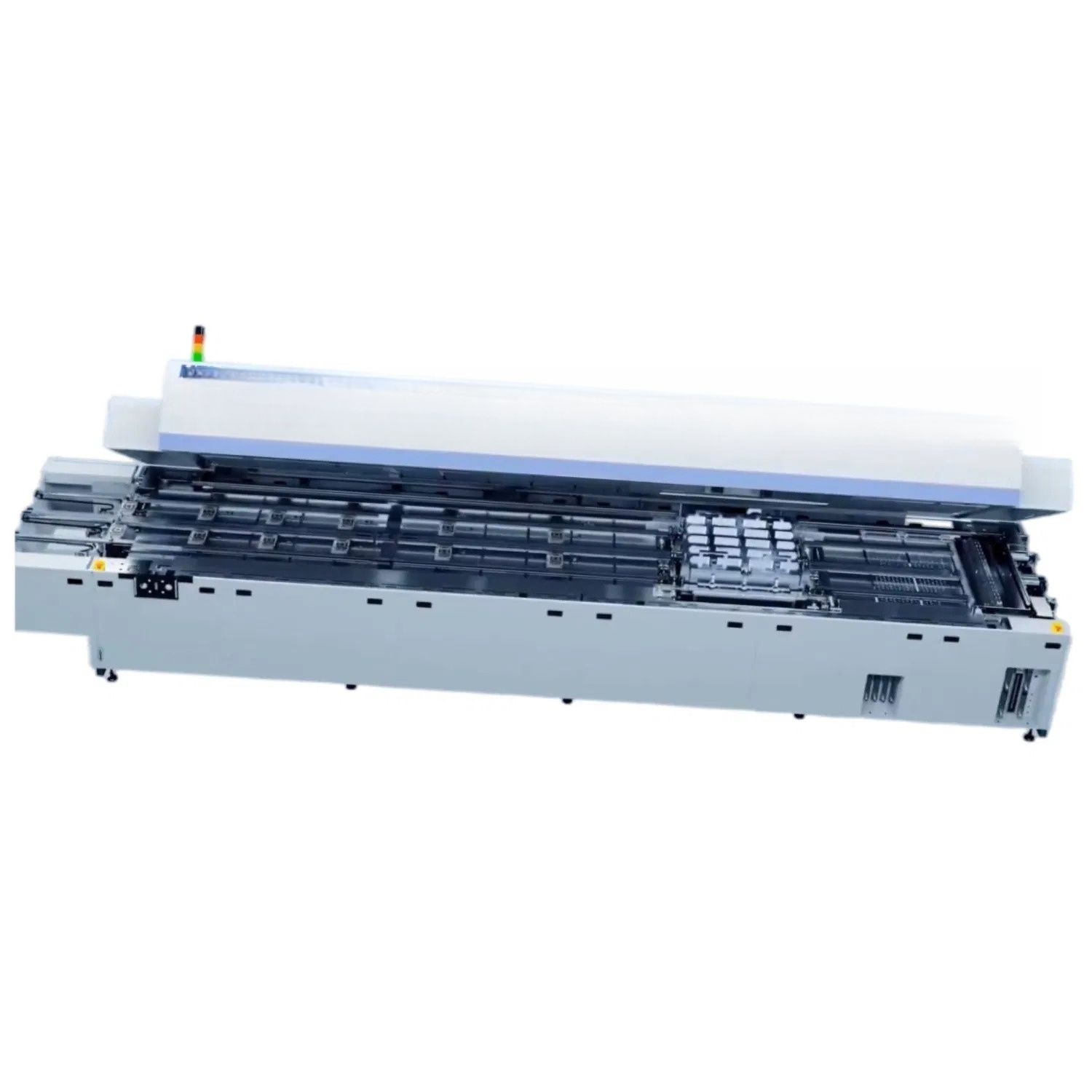

Robust conveyor system handles diverse PCB sizes up to 56cm wide with precise closed-loop speed control.
Heating Zones (Top/Bottom): 13 / 13
Heated Tunnel Length: 355 cm (140 in)
Maximum PCB Width (Standard): 56 cm (22 in)
Standard Temperature Range: 60°C - 350°C
Temperature Control Accuracy: ± 0.1°C
Atmosphere Options: Air or Nitrogen
