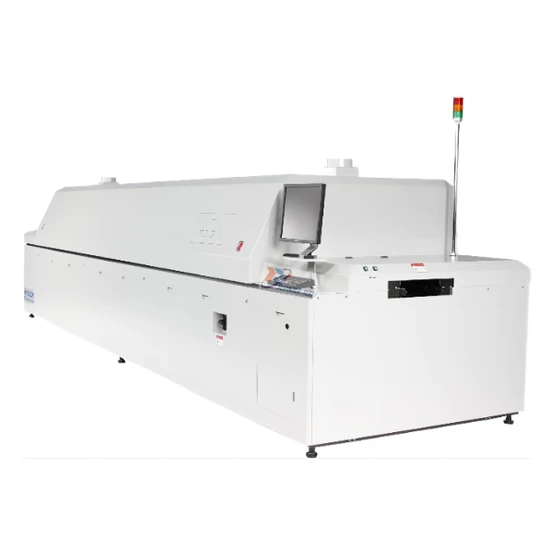

A high-speed, 12-zone conveyor reflow oven designed for efficient and precise PCB soldering in SMT assembly lines.
Features 12 distinct heating zones to ensure optimal thermal profiling for complex PCB assemblies.
Achieves superior soldering quality for both lead-free and leaded applications with precise temperature control.
The robust conveyor system supports PCB widths from 50mm to 400mm, accommodating a wide range of products.
Engineered for high-volume manufacturing with a variable conveyor speed of up to 1.6 meters per minute.
Vertical installation design optimizes floor space in demanding production environments.
Equipped with a PLC core component for reliable and automated process management.
Model: NC06M-123LRF
Heating Zones: 12
Overall Dimensions (LxWxH): 6660 x 1360 x 1450 mm
Applicable PCB Width: 50 - 400 mm
Conveyor Speed: 0.4 - 1.6 m/min
Power Supply: 3-Phase 380V, 50/60Hz
