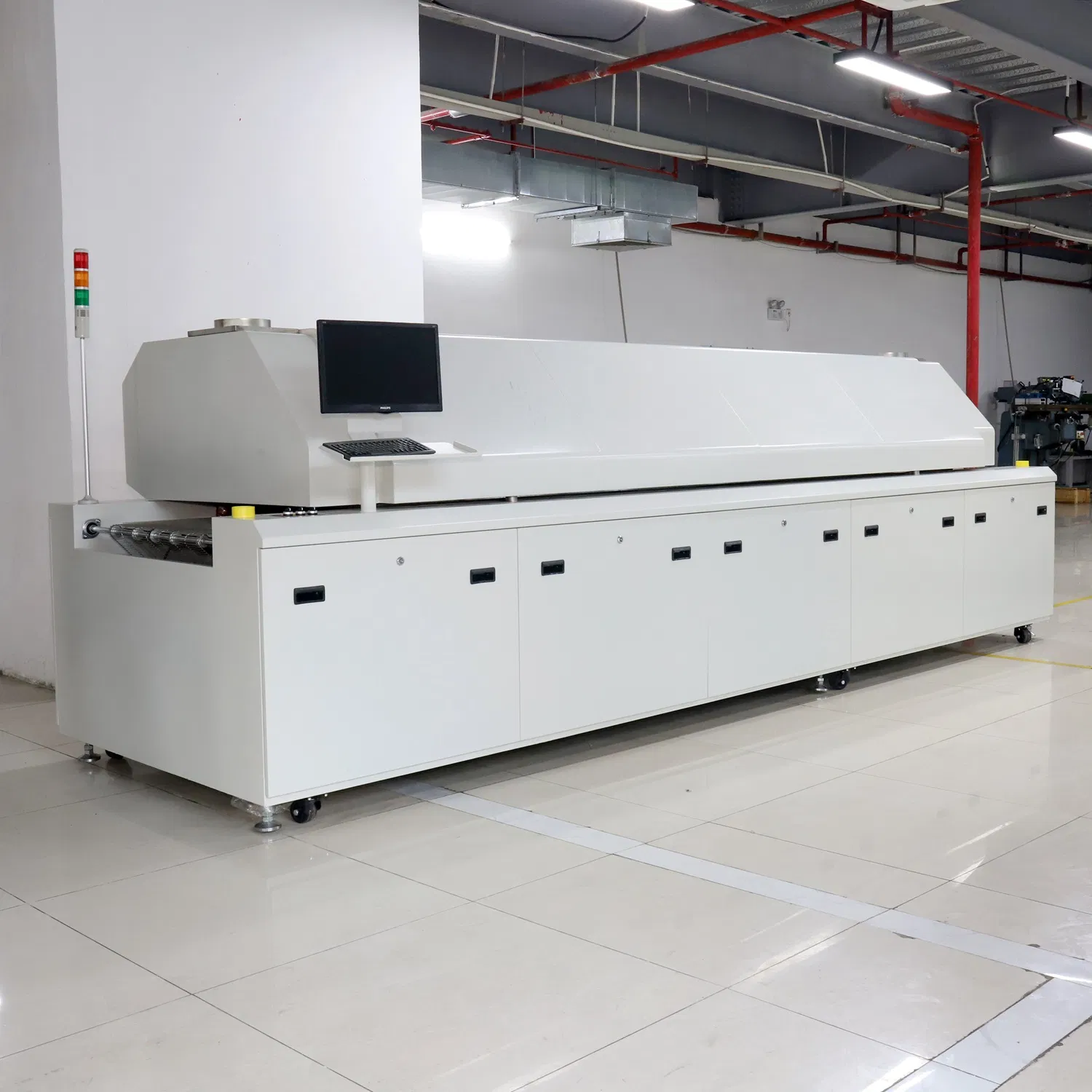

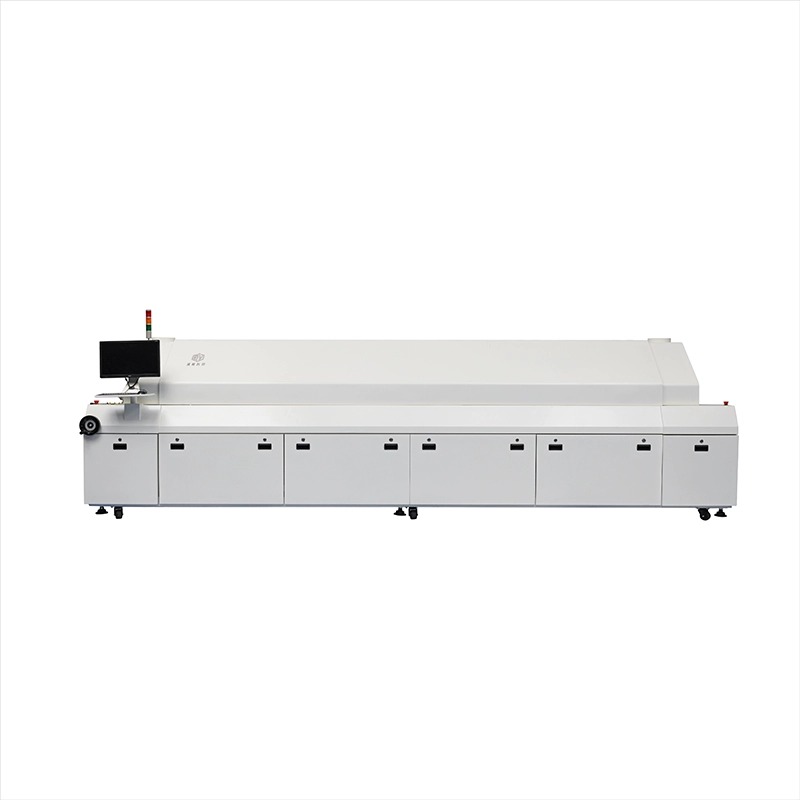

Highly configurable 13-zone reflow oven designed to meet unique and challenging industrial heating requirements with precision and flexibility.
Fully customizable reflow oven configurations tailored to specific and challenging application needs.
Features 13 independent top and bottom forced convection heating zones for precise thermal profiling.
Offers exceptional thermal performance, suitable for demanding processes with high-temperature options available (up to 450°C).
Available in both Air and Nitrogen atmosphere configurations to meet diverse process requirements.

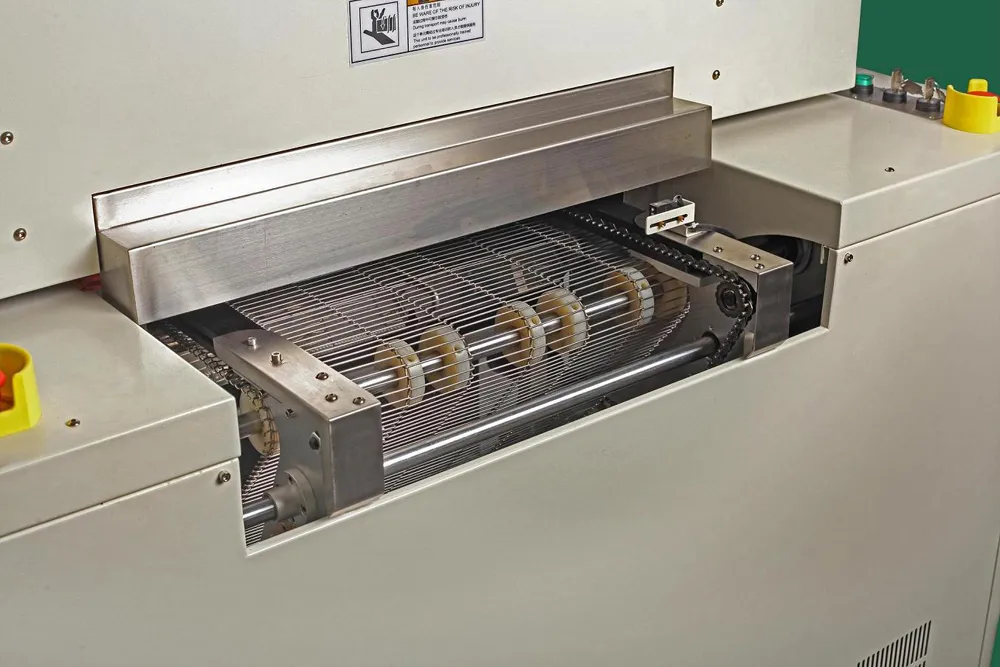

Robust conveyor system accommodates large PCBs (up to 56cm standard) with closed-loop speed control.
Advanced computer control system includes data logging, password protection, and profiling software standard.
Designed for energy efficiency with low continuous power consumption during operation.
Multiple optional features available, including flux management, oxygen monitoring, and advanced board handling.
Number of Heating Zones (Top/Bottom): 13 / 13
Heated Tunnel Length: 355 cm (140 in)
Maximum PCB Width (Standard): 56 cm (22 in)
Standard Temperature Range: 60°C - 350°C
Temperature Control Accuracy: ± 0.1°C
Atmosphere Options: Air or Nitrogen
